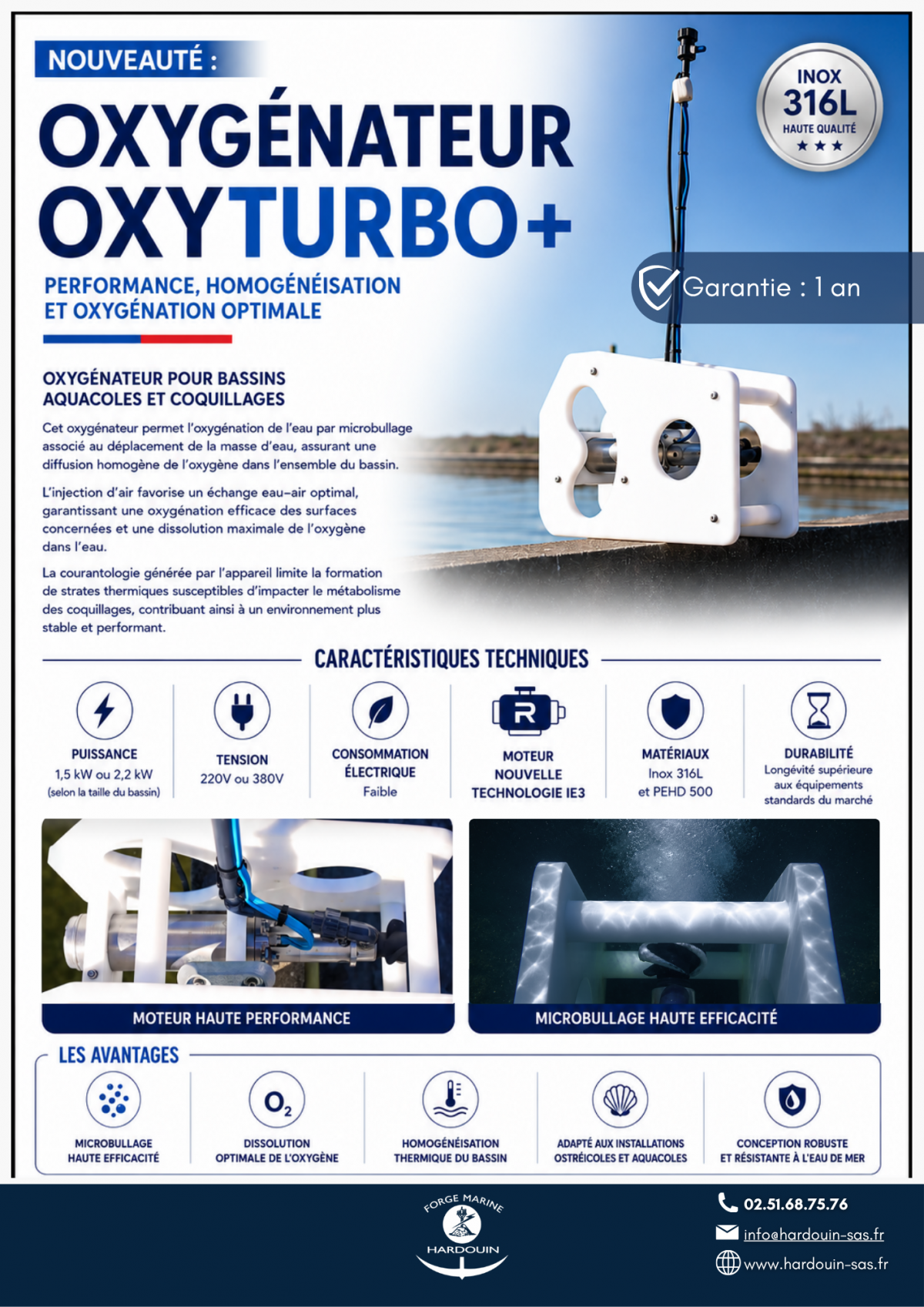

New: OXYTURBO+ Oxygenator

Oxygenator for aquaculture and shellfish farming tanks

This oxygenator oxygenates the water through microbubble aeration combined with water mass movement, ensuring a homogeneous diffusion of oxygen throughout the entire tank.

Air injection promotes optimal water–air exchange, guaranteeing efficient oxygenation of the targeted surfaces and maximum oxygen dissolution in the water.

The water circulation generated by the device helps prevent the formation of thermal layers that could affect the metabolism of shellfish, contributing to a more stable and efficient environment.

Technical Specifications

Power: 1.5 kW or 2.2 kW (depending on tank size)
Voltage: 220V or 380V
Power consumption: Low
Materials: 316L stainless steel and PEHD 500
Durability: Longer lifespan than standard equipment on the market

Advantages

High-efficiency microbubble aeration
Optimal oxygen dissolution
Thermal homogenization of the tank
Suitable for oyster farming and aquaculture installations
Robust design resistant to seawater

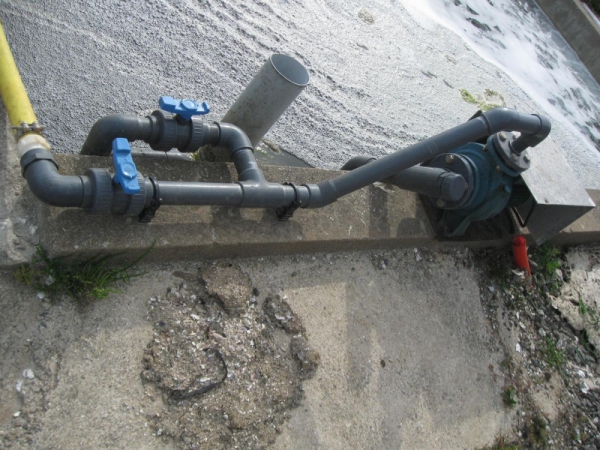

Surface Pumping System with

Integrated Venturi

Description

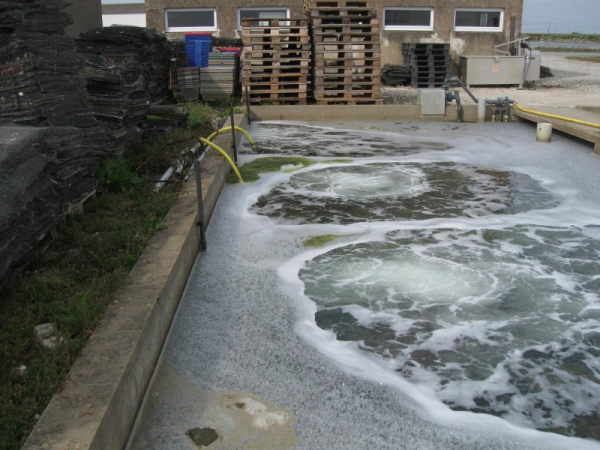

The surface pumping system with an integrated Venturi device in the tank ensures efficient water circulation while providing optimal oxygenation of the water.

Thanks to the Venturi effect, air is naturally drawn into the water flow without the need for additional aeration equipment, improving water quality and promoting a healthy environment for aquaculture and oyster farming installations.

This solution is ideal for farming tanks, oyster tables, purification systems, and closed-loop water circuits.

Advantages

Continuous and homogeneous oxygenation
Improved water quality
Optimized hydraulic performance
Simple and integrated installation
Low maintenance
Robust and durable design

Applications

Aquaculture
Oyster farming
Settling tanks
Filtration circuits
Recirculating Aquaculture Systems (RAS)

Oxygenation System for Shellfish

Oxygenation system for shellfish with TOP3LA stainless steel submersible pump, specially designed for seawater, equipped with 1 or 2 Venturi nozzles.

Designed for aquaculture and oyster farming installations, this system ensures continuous and uniform oxygenation of tanks. The stainless steel submersible pump, specifically adapted for seawater, guarantees excellent corrosion resistance and long service life.

The Venturi nozzles allow efficient air injection into the hydraulic flow, improving water quality and promoting an optimal environment for the storage and preservation of shellfish.

Advantages

High-performance and continuous oxygenation
Stainless steel pump suitable for seawater
1 or 2 Venturi nozzles depending on requirements
Simple and reliable installation
Durable solution for storage and purification tanks

Oxygenation System for Crustaceans with Blower

Oxygenation system specially designed for the holding and preservation of crustaceans in tanks or live storage systems, equipped with a high-performance blower that ensures continuous and uniform air injection.

The blower generates a constant air supply, enabling optimal water–air exchange and efficient oxygen dissolution in the water. This controlled oxygenation helps stabilize tank parameters and preserve the vitality of the crustaceans.

Advantages

Continuous and consistent air supply
Homogeneous oxygenation throughout the tank
Improved water quality
Simple and reliable installation
Suitable for live tanks, storage tanks, and purification systems
